Procedure

STEP 1:

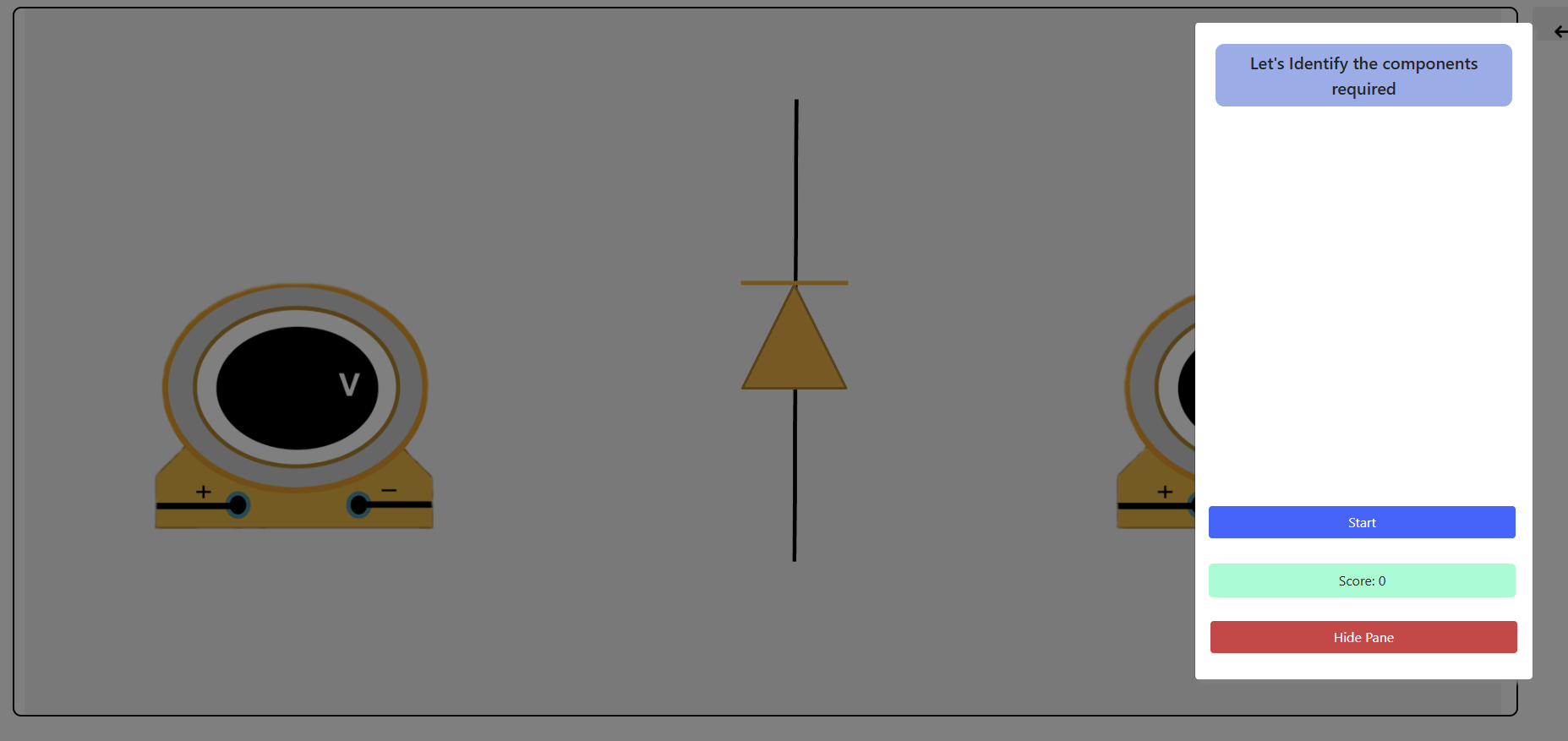

Follow the instructions and identify the components.

STEP 2:

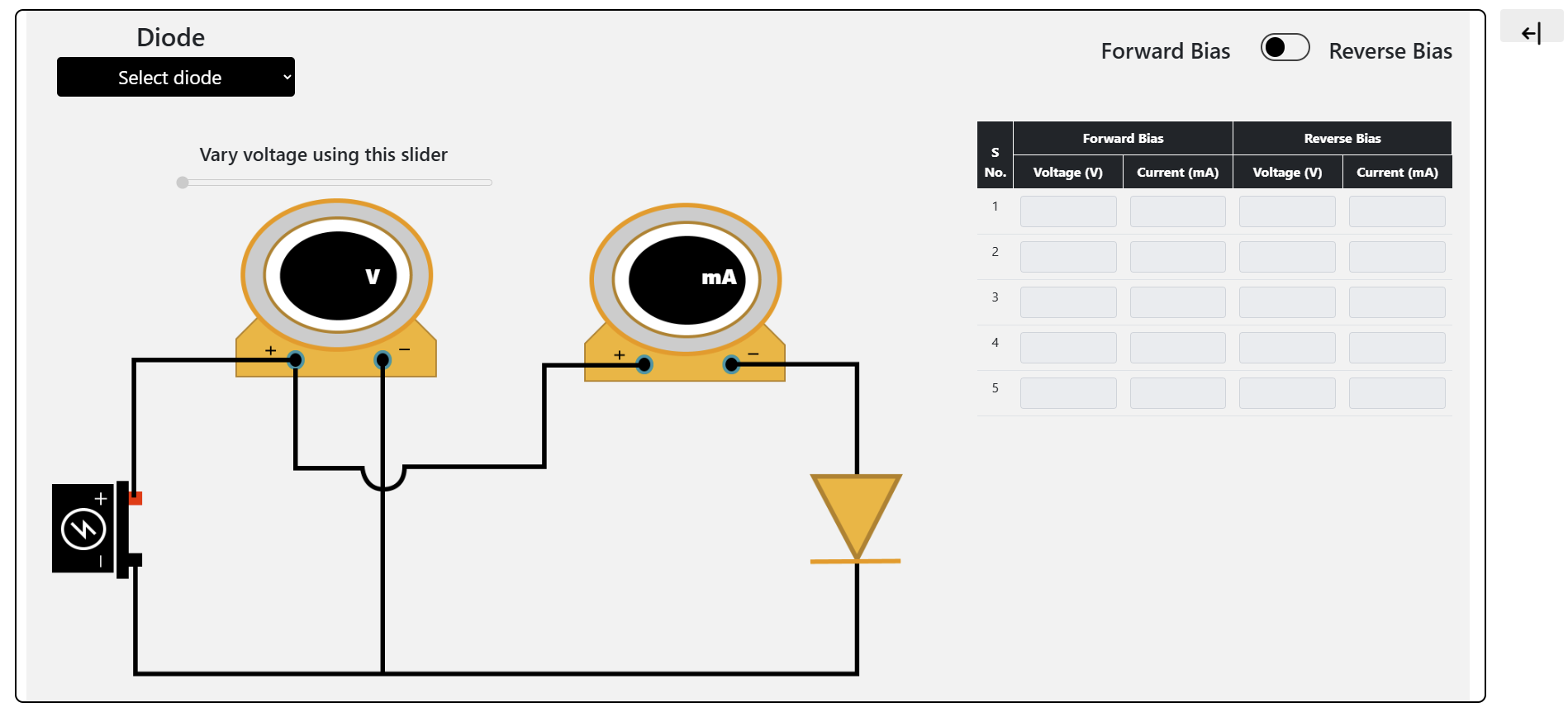

Follow the instructions and take required readings for forward and reverse bias.

STEP 3:

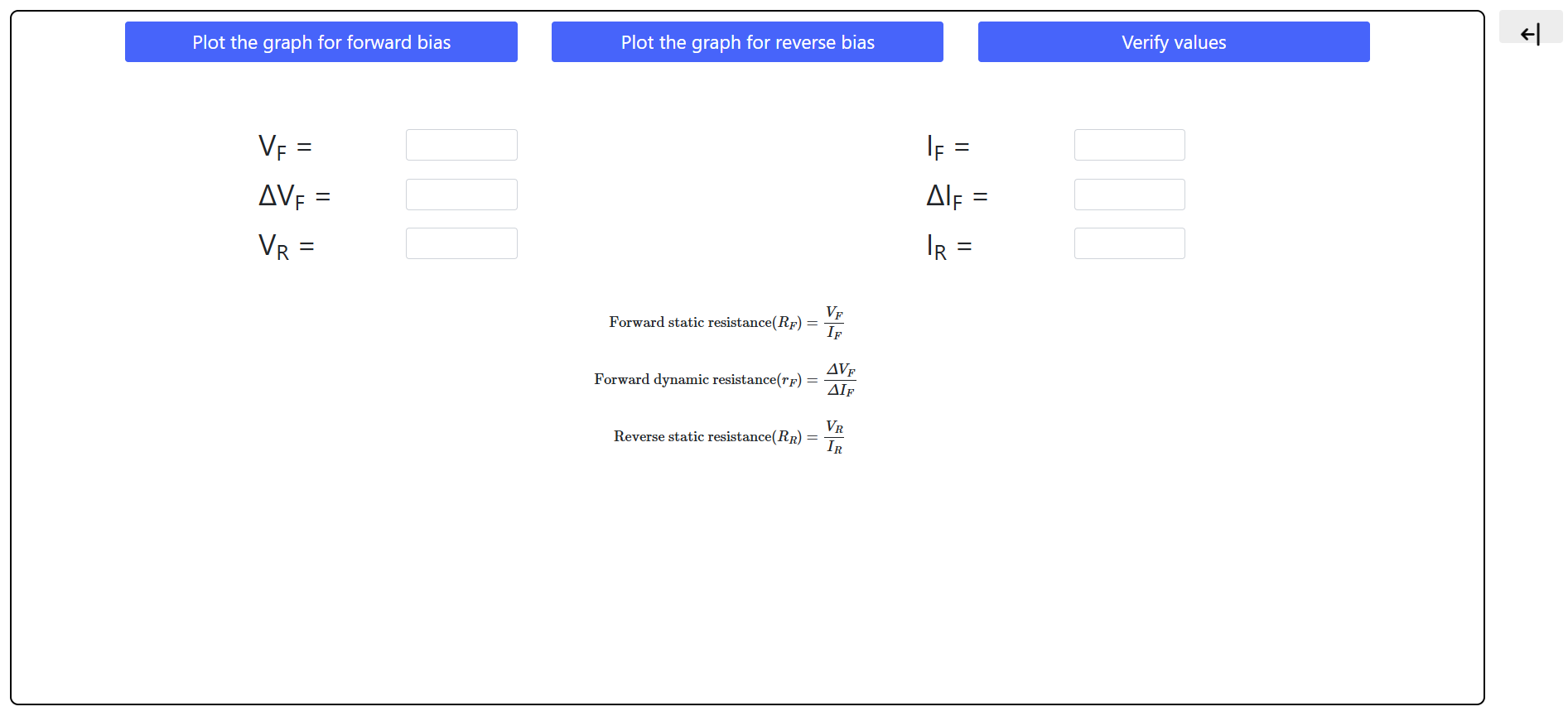

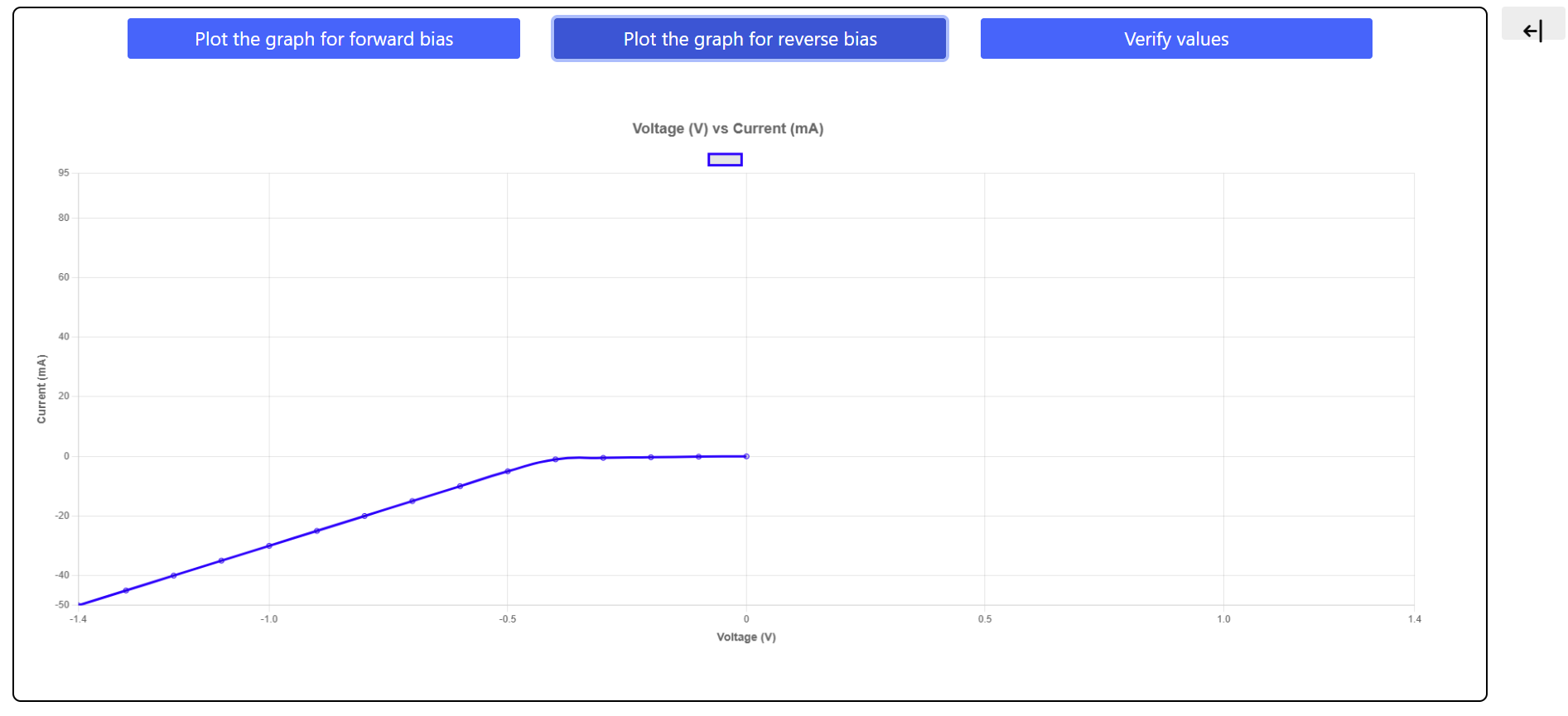

Verify these values using graph.

Least count of voltmeter = __________V

Least count of milliammeter = __________mA

Least count of micro-ammeter = __________μA

Results:

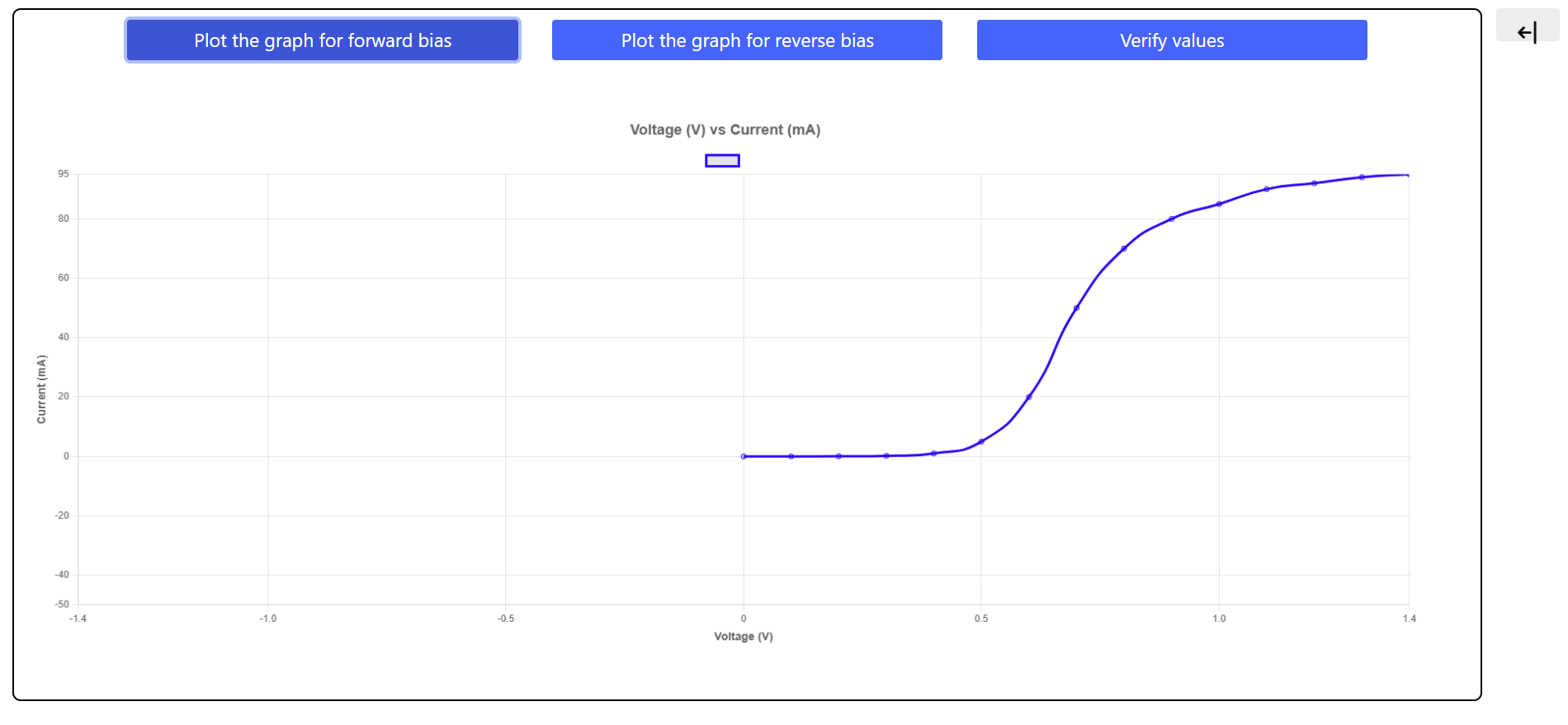

1. The forward characteristic of the diode is shown in the figure.
2. Knee voltage is found to be ____ V.
3. Forward resistance of the diode is ____ Ω.
